Fiber Optic Pigtail

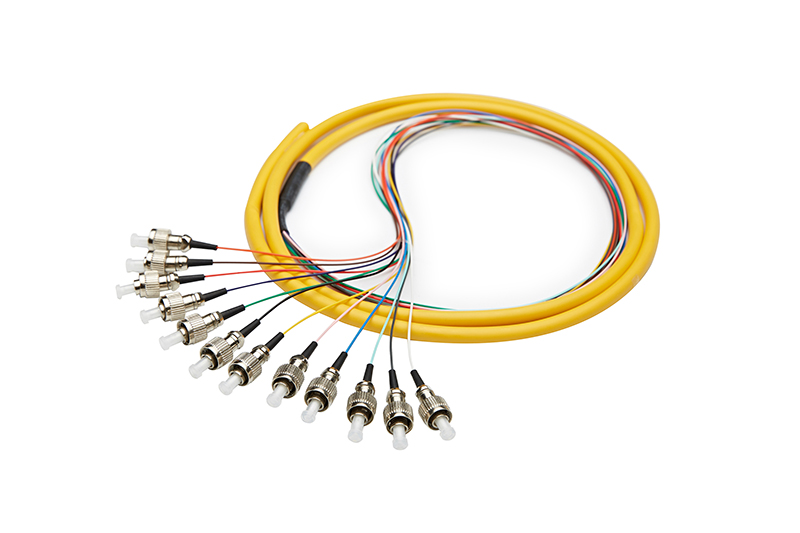

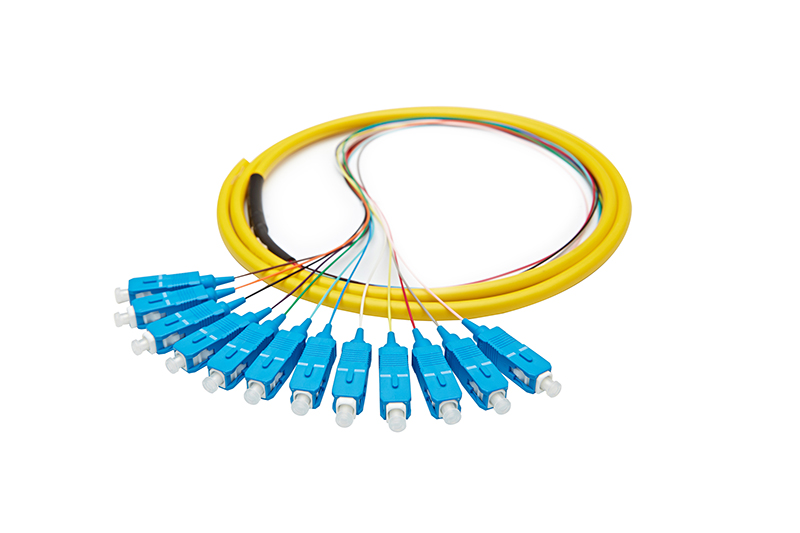

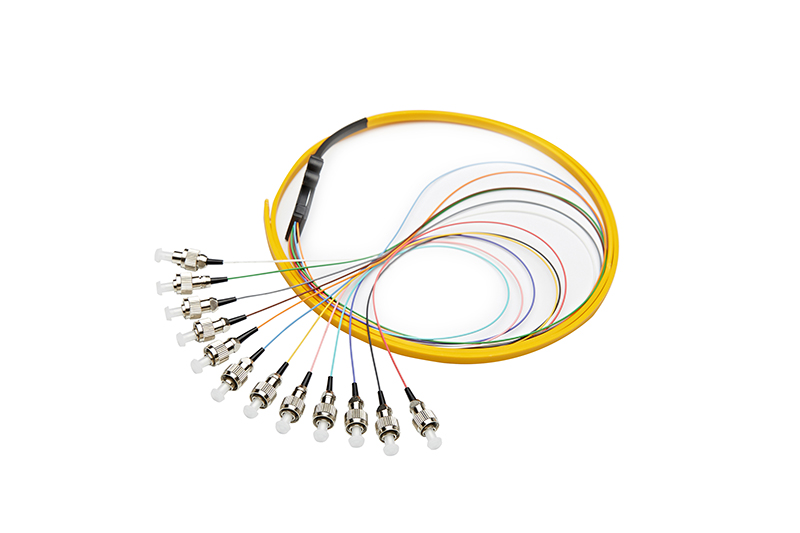

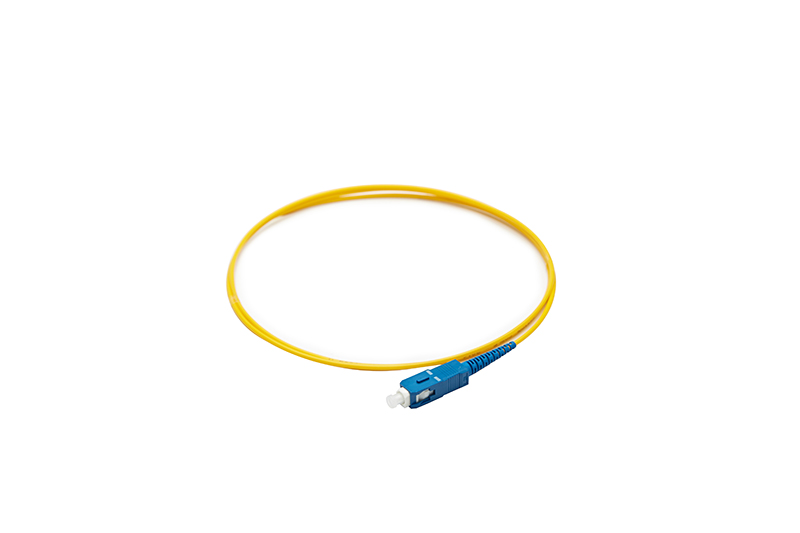

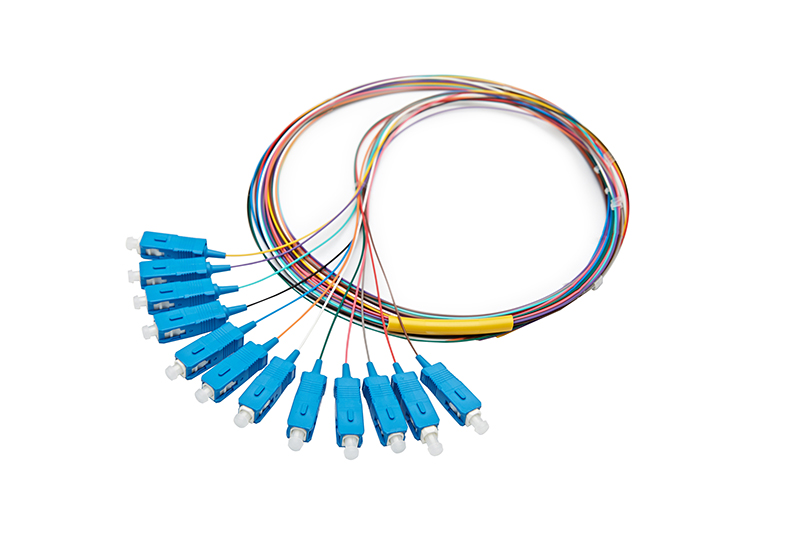

Tianzhou Optic's fiber optical pigtail is a short optical fiber permanently attached to a source, detector or other fiber optic device at one end and an optical connector at the other end. Tianzhou Optic provide various kinds of pigtails, such as standard type of LC, FC, SC, ST, MU, MTRJ, MPO, D4, DIN, SMA, E2000 etc., and also provide ribbon, bundle multi-fiber pigtails.
Cable Color: ●Yellow ●Orange ●Aqua ●Specify
Connector Type: ●LC ●SC ●FC ●ST ●D4 ●SMA ●MU ●MPO ●MTRJ ●E2000
Polishment: ●PC ●UPC ●APC
Fiber Type: ●9/125um ●50/125um ●62.5/125 (OM3)
Cable Diameter: ●0.9mm ●2.0mm ●3.0mm
Cable Length: ●0.5m ●1.0m ●2.0m ●3.0m ●Specify
Cable Type: ●Simplex ●Duplex ●Water-proof ●Break-out ●Ribbon ●Bundle
Cable Jacket: ●LSZH ●PVC ●OFNR ●Specify
Features: (1)Constructed from high quality connectors and standard fibers; (2)Semi-tight-buffer, easy strippable; (3)Connection easy to link properly; (4)High corrosion resistance and high interface performance; (5)Supplied with a test report detailing insertion and return loss.
Applications: (1)Telecommunication system; (2)Optical communication networks; (3)CATV, FTTH, LAN; (4)Fiber optic sensors; (5)Optical transmission system; (6)Test equipment.
NOTE: We can provide specify pigtail which required by customer.
|Parameter||Single-Mode Fiber||Multi-Mode Fiber|
|Insertion Loss (dB)||≤0.3||≤0.2||≤0.3||≤0.3|
|Return Loss (dB)||≥45||≥50||≥60||≥20|
|Exchangeability Loss (dB）||≤0.2|
|Operating Temperature (℃)||-40~+85|
|Storage Temperature (℃)||-40~+85|
|Wire Diameter (mm)||φ0.9mm, φ2.0mm, φ3.0mm|
