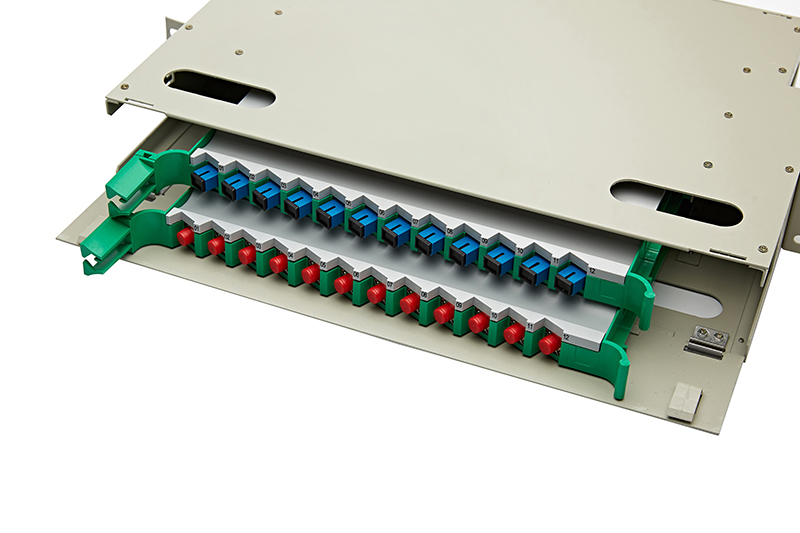

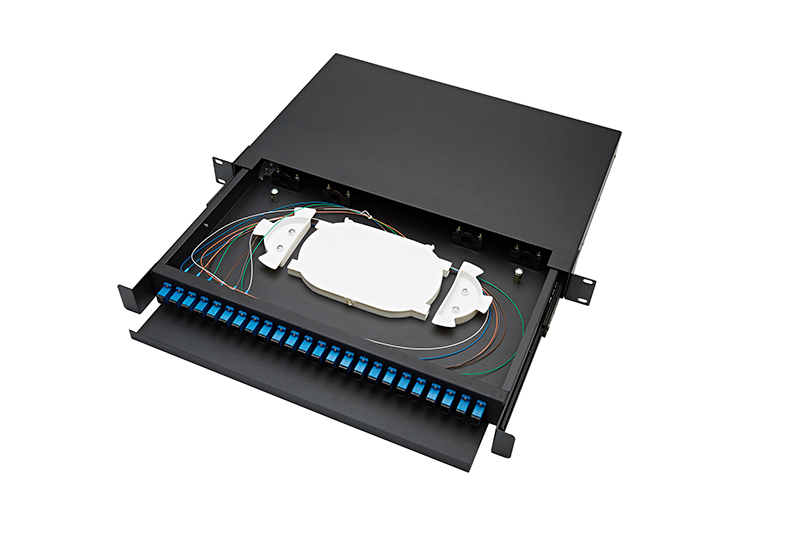

Optical Fiber Terminal Box - Drawer Type
Optical Fiber Terminal Box can be applied in the branch connection of optical cable termination, 19”standard structure, rack mounting, available for the installation of FC、SC、ST、LC adaptors.
Port: ●1×2 ●1×4 ●1×8 ●1×16 ●1×64 ●2×4 ●2×8 ●2×16 ●Specify
Input Pigtail Style: ●Bare Fiber ●900um Loose tube ●2.0mm Cable ●3.0mm Cable
Input Connector: ●None ●FC/APC ●FC/UPC ●SC ●ST ●LC ●E2000 ●Specify
Output Pigtail Style: ●Bare Fiber ●900um Loose tube ●2.0mm Cable ●3.0mm Cable
Fiber Length: ●0.5m ●1m ●1.5m ●2m ●3m ●4m ●Specify
Output Connector: ●None ●FC/APC ●FC/UPC ●SC ●ST ●LC ●E2000 ●Spcify
Package：●19”1U Rack ●Specify
Features: (1)Low insertion loss; (2)Low PDL; (3)Compact design; (4)Good channel-to-channel uniformity; (5)Wide operating wavelength: from 1260nm to 1650nm; (6)Wide operating temperature: from -40℃ to 85℃; (7)High reliability and stability.
Applications: (1)FTTX systems; (2)PON networks; (3)CATV links; (4)Optical signal distribution.
NOTE: We can provide specify terminal box which required by customer.
|Dimension||Max Capacity (Cores)||Remark|

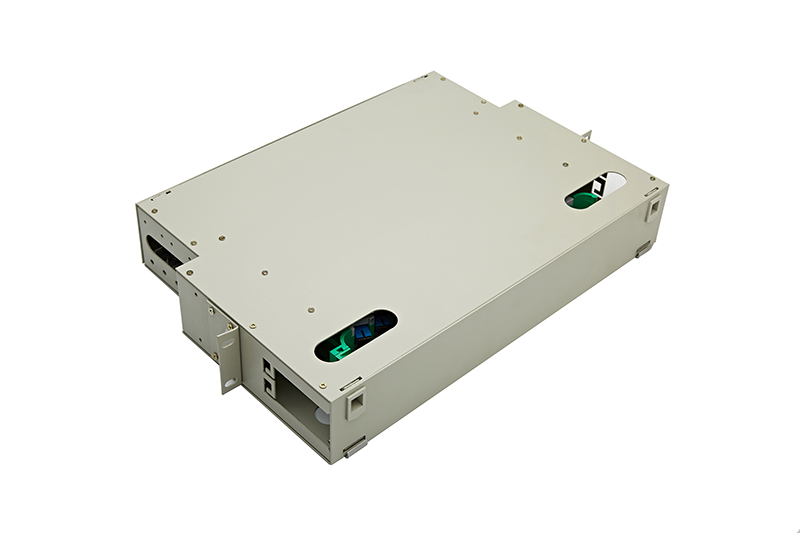

The case body is made from cold rolled steel sheet,
and the surface use the technology of electrostatic spraying.
Available for the installation of FC,SC,ST,LC etc. adaptors.
